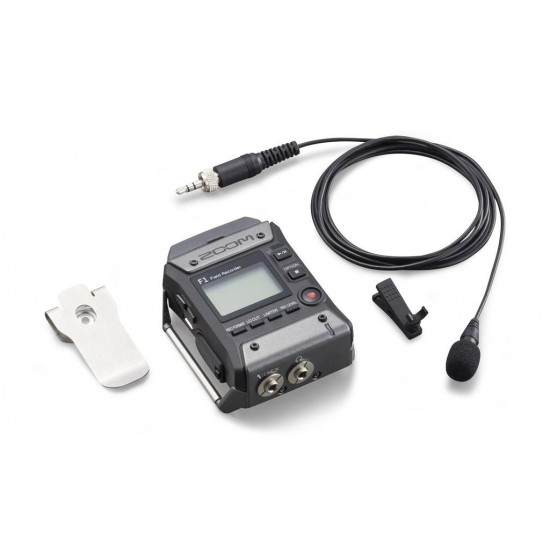

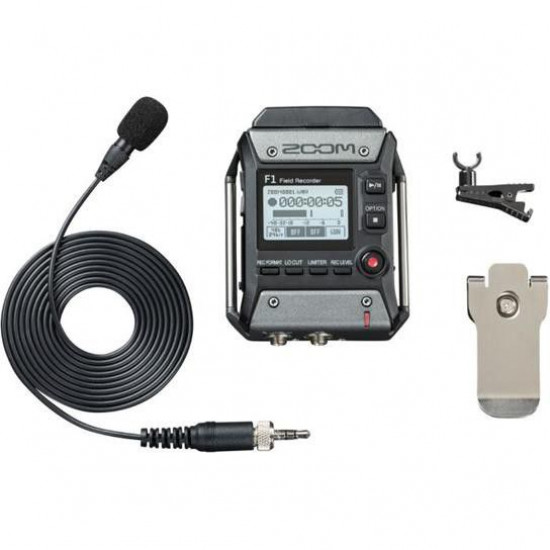

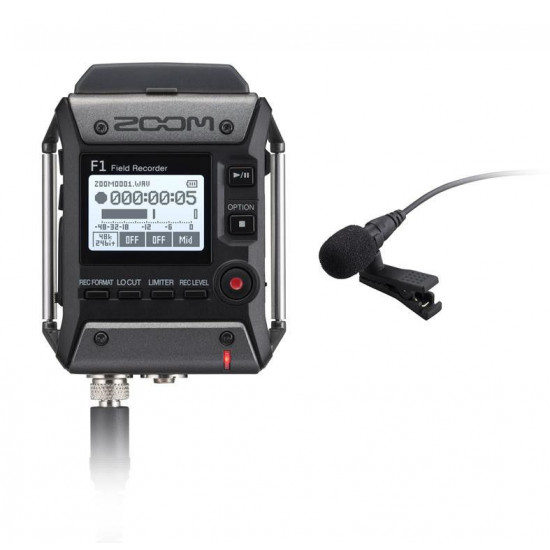

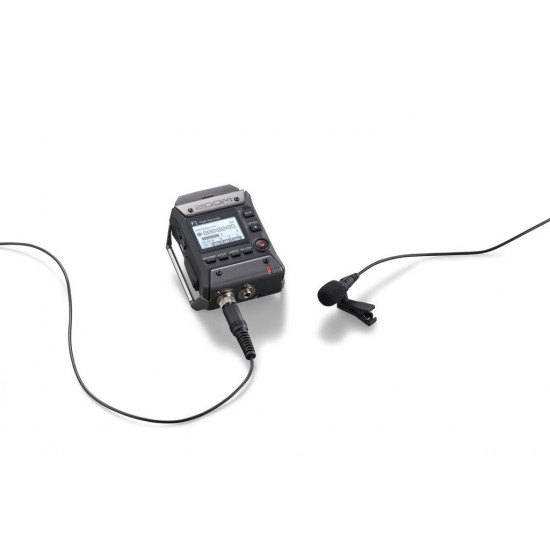

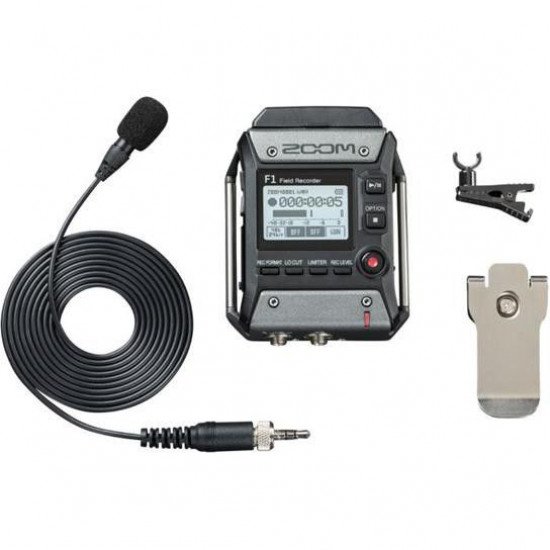

Zoom F1 Field Recorder with Lavalier Microphone

Product Description:

F1 FIELD RECORDER + LAVALIER MIC

The Zoom F1 Field Recorder + Lavalier Mic is the perfect solution for videographers who need to capture the nuance of every word with professional quality audio

Sound & Story

The F1 Field Recorder + Lavalier Mic completes your video's story by providing outstanding audio no matter where your production takes you.

Capture Every Nuance

The F1-LP comes with Zoom's newly engineered LMF-1 lavalier mic, designed for capturing every nuance. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, perfect for interviews, wedding vows, and more.

Low Profile Design

With its minimal profile, the F1 attaches neatly on belts, waistbands, or slipped into a pocket so the recorder can be easily concealed.

Worry-Free Recording

The LMF-1 Lavalier mic connects directly to the F1 and records to a micro SD card. By recording directly to the F1, interference or noise commonly experienced when using a wireless beltpack system is eliminated.

One-Touch Controls, Easy-To-Read Display

The F1's one-touch buttons gives you easy access to record levels, limiter control, lo-cut filter and volume output. It's newly designed monochromatic LCD display ensures visibility even in bright sunlight.

Essential Features for Videographers

AUTO LOCK

The Record Hold function or the Hold Switch can be used to prevent your subject from accidentally hitting buttons while recording.

NO CHANCE OF OVERLOAD

An on-board limiter and auto-level control keep your levels safe when spikes in loud volume occurs.

CONVENIENT POWER SOURCES

The F1 can be powered using two AAA batteries (included) or with the optional AD-17 power adapter.

USB CONNECTIVITY

Transfer recordings to your computer in card reader mode or record directly to your computer or iPad using the F1 in USB audio interface mode

Record in Multiple Audio Formats

The F1 records audio in WAV or MP3 formats. WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant.

One Recorder, Multiple Mic Options

With our proprietary 10-pin connector, the F1 is compatible with all of Zoom's interchangeable mic capsules, providing more options for recording. (SSH-6, XYH-6, MSH-6, XYH-5, EXH-6, SGH-6)

Features:

Two-channel audio recorder

Compatible with Zoom microphone capsules

Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats

One-touch button controls

1.25" monochrome LCD display

Rec Hold function to avoid accidental operation of buttons

Stereo 1/8" Mic/Line In mini phone jack with Plug-in power (2.5V)

Stereo 1/8" Phone/Line Output jack with dedicated volume control

Built in limiter and auto level control to avoid clipping

Pre-Record function

Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable

Sound marker function that outputs quick tone to make syncing audio and video easy

Records directly to micro SD and SDHC cards up to 32 GB

Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device

Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)

Up to 10 hours of operation with alkaline batteries (when using lavalier)

Specifications:

Recording media: microSD/microSDHC cards (Class 4 or higher, up to 32 GB)

Recording formats: WAV - 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit

MP3 - 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps

Mono/stereo ID3v1 tags supported

Display: 1.25" monochrome LCD

Inputs

MIC IN : ZOOM mic capsule input

MIC/LINE IN: Connector: 3.5 mm stereo mini (with screw lock)

Supports plug-in power (2.5 V)

Input gain: ?12 dB – +36 dB

Input impedance: 2 k or more

Lavalier mic : Plug: 3.5 mm stereo mini (with screw lock)

Directionality: Omnidirectional

Sensitivity: -32 dB/1 Pa at 1kHz

Maximum sound pressure input: 115 dB spl

Cable length: 160 cm

Outputs

PHONE OUT : Connector: 3.5 mm stereo mini (with screw lock)

Maximum output level: 11 mW + 11 mW (into 32 load)

USB: microUSB

Mass storage operation: USB 2.0 High Speed

Audio interface operation: USB class compliant

44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out

Transfer method: asynchronous

Power

2 AAA batteries (alkaline, NiMH or lithium)

AC adapter (ZOOM AD-17): DC 5V/1A

Recording time using batteries: Lavalier mic (48 kHz/24-bit, mono, plug-in power on):

Alkaline batteries: about 10 hours

NiMH batteries 750 mAh): about 9 hours

Lithium batteries: about 16 hours

Dimensions: 64 mm (W) x 79.8 mm (D) x 33.3 mm (H)

Weight: 120 g (without batteries)

What's in the box

Zoom F1 Field Recorder with Lavalier Microphone

LMF-1 Lavalier Microphone

WSL-1 Windscreen

MCL-1 Mic Clip

BCF-1 Belt Clip

2 x AAA Batteries
