SmallRig Advanced Cage Kit for Sony Alpha 7RV / Alpha 7IV / Alpha 7SIII

Product Description:

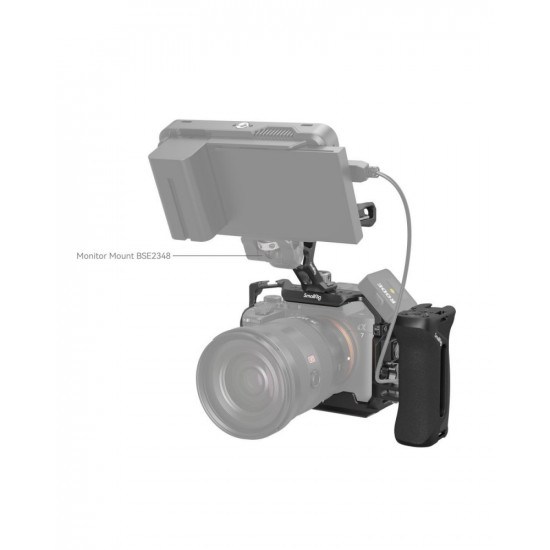

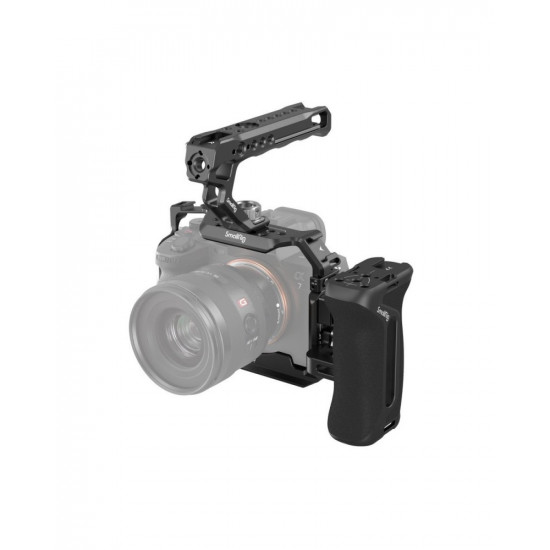

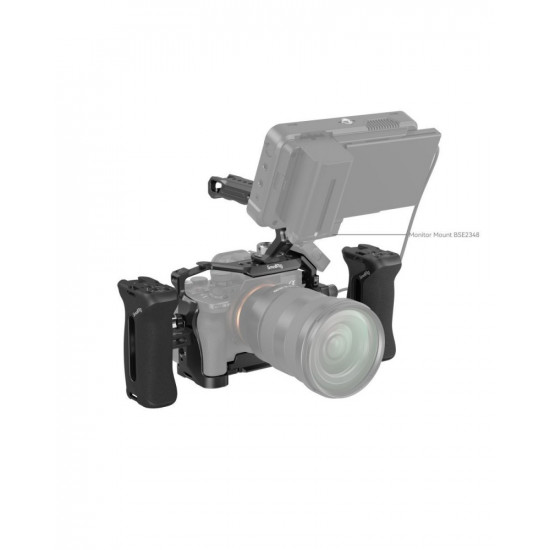

SmallRig Advanced Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 3669C is designed to reduce arm load and increase stability during handheld shooting, while offering a wide range accessory mounts. It includes a cage, a HDMI cable clamp, a top handle and a side handle. The top handle feels comfortable and enables easy carrying and at low-angle shot. The side grip features a silicone insert for better grip and more stable two-handed shooting. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails support monitor mount 2294, microphones, LED lights, monitor mount 2903, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4"-20 screw and two locating pins, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow for attaching hand straps. The cage comes with built-in magnetic flat-head screwdriver & hex spanner that facilitate disassembly and assembly.

Note：

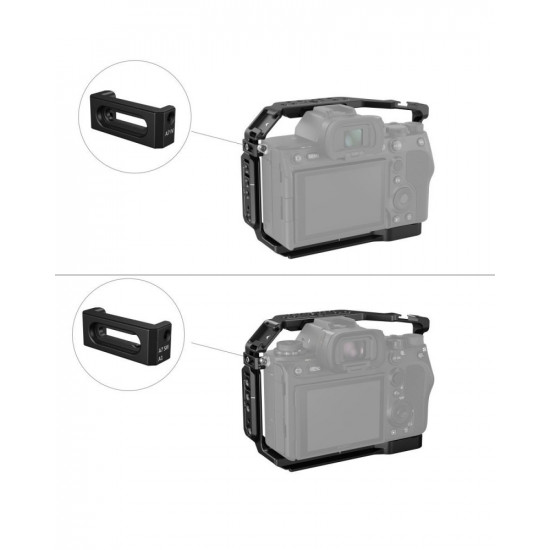

1. After fixing the 1/4"-20 screw at the bottom of the cage, remove the anti-deflection pin from the staging hole in the battery compartment position and fix it to the corresponding position.

2. To use the side lock adapter of the cage, please remove the split ring on the left side of the camera first.

3. HDMI Cable Clamp interferes with the synchro terminal interface when used on the Alpha 7R V camera.

Work With

Sony Alpha 7R V

Sony Alpha 7 IV

Sony Alpha 7S III

Technical Data

Product Dimensions: 212×176.5×135 mm

Package Dimensions: 167×157.5×86 mm

Product Weight: 556±5g

Package Weight: 700.5±5g

Material(s): Aluminum Alloy, Stainless Steel, Silicone

Packing List

1 x Cage

1 x HDMI Cable Clamp 3000

1 x ARRI Locating Handle 2165C

1× Allen Wrench

1 x Handle

1 x Handle Adapter
