Product Description:

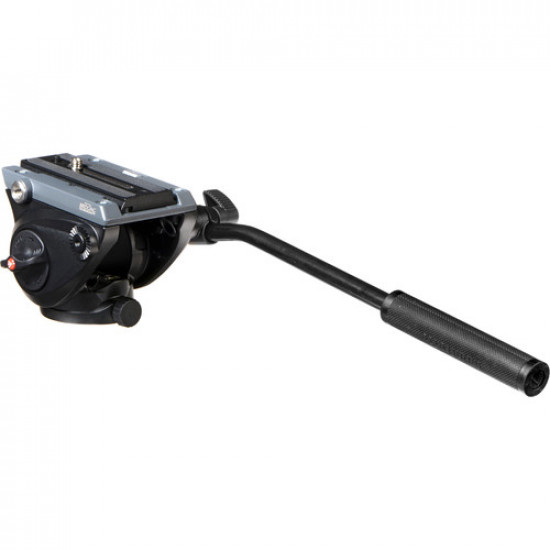

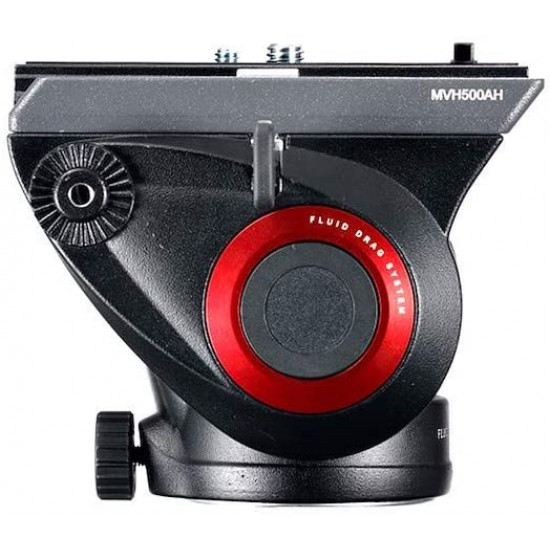

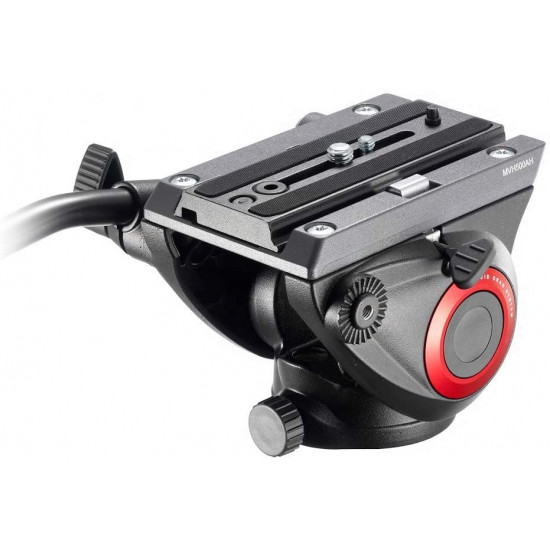

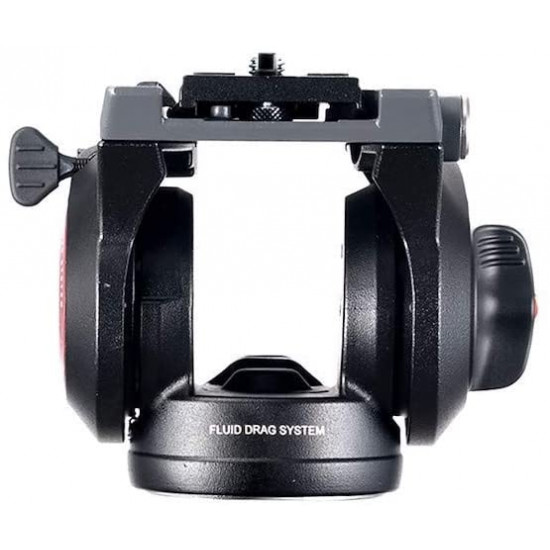

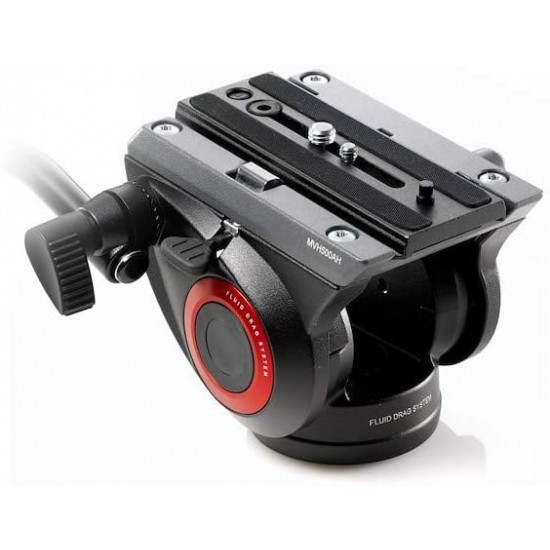

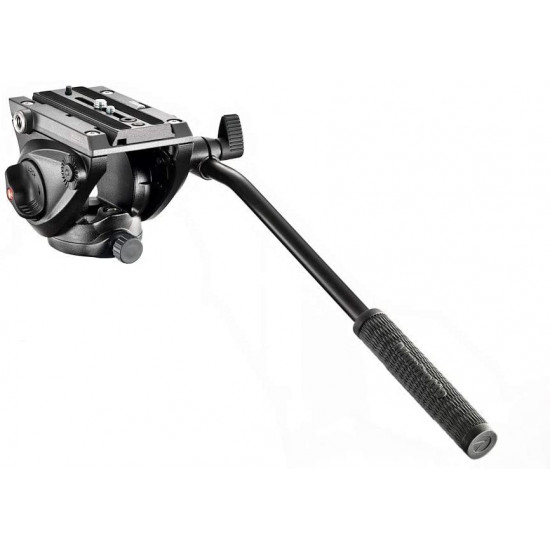

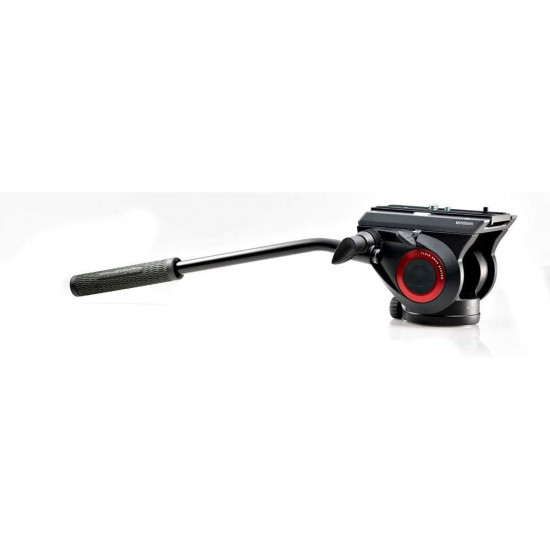

MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum load capacity of 17.6 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.

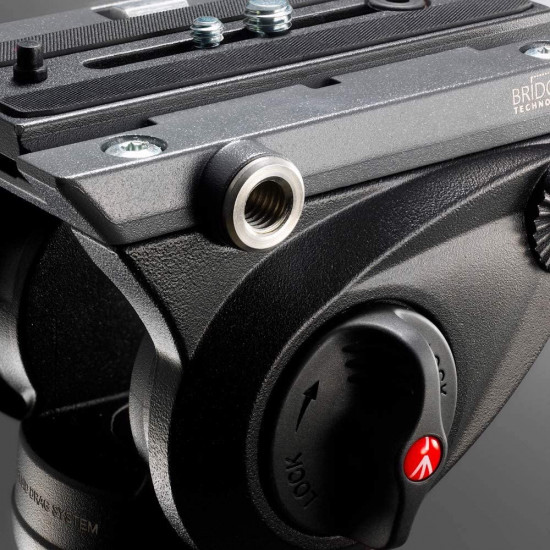

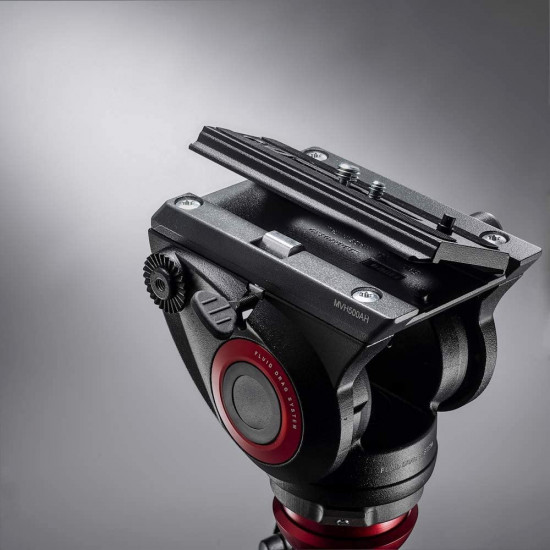

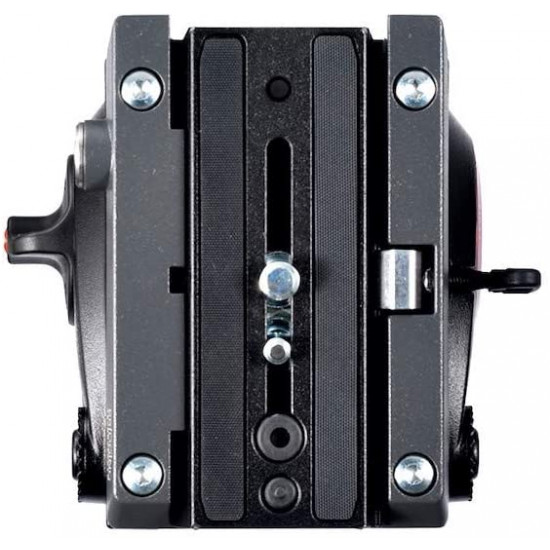

The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor.

The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle.

Wide platform fluid pan video head ideal for HDSLR cameras

5.3 lb pre-set spring-loaded counterbalance system

Side-lock system for easier and safer camera mounting

Aluminum alloy construction

Includes long quick-release plate

17.6 lb maximum weight capacity

Camera Plate

Camera Plate Features Quick Release, Sliding Balance Plate

Camera Plate Type 500PLONG

Camera Mounting Screw 1 x 1/4"-20 Male

1 x 3/8"-16 Male

Tripod Platform

Base Mount 3/8"-16 Female

Pan & Tilt

Drag Control Fixed

Drag Type Fluid

Vertical Tilt +90° to -70°

Panning Range 360°

Independent Pan Lock Yes

Independent Tilt Lock Yes

Physical

Material Aluminum

Load Capacity 17.6 lb / 8 kg

Counter Balance Fixed (5.3 lb / 2.4 kg)

Bubble Level 1

Operating Temperature -4 to 140°F / -20 to 60°C

Dimensions 3.74" / 9.5 cm

Weight 2 lb / 0.9 kg
