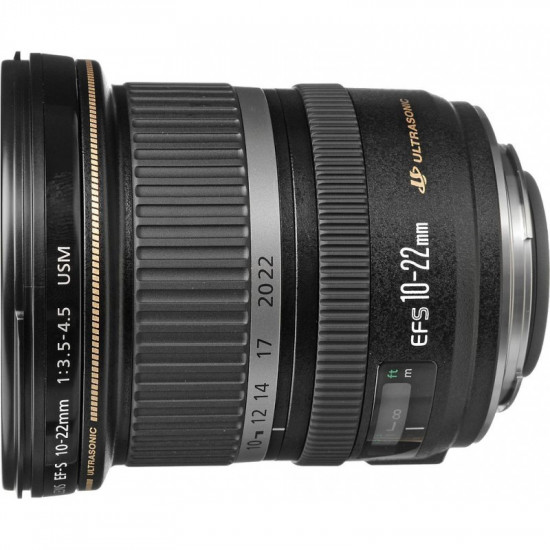

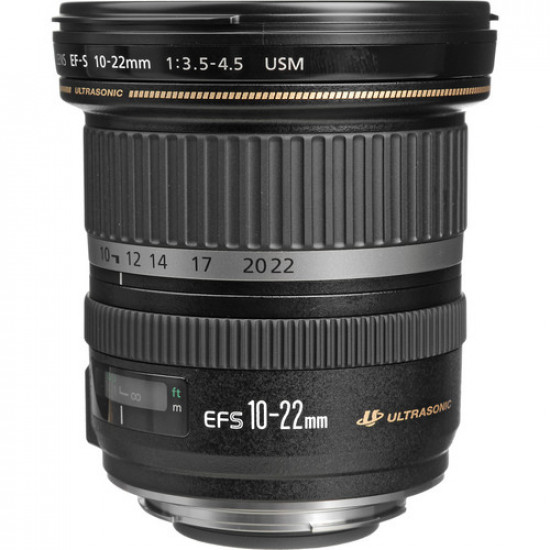

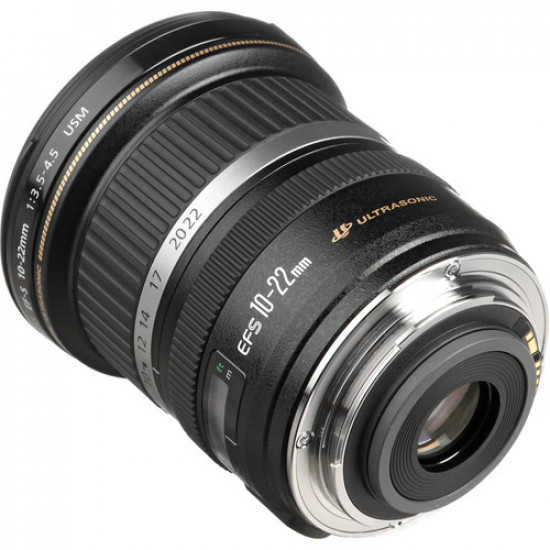

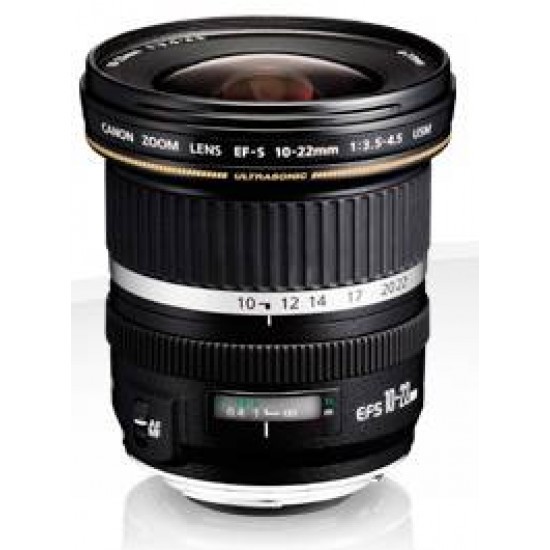

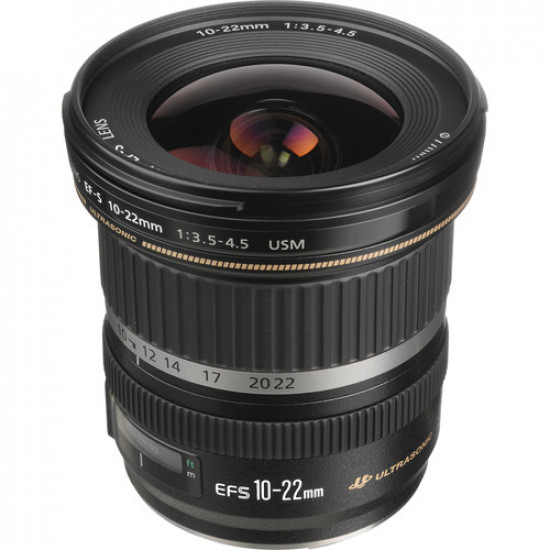

Canon EF-S 10-22mm f/3.5-4.5 USM Lens

Product Description:

Canon EF-S 10-22mm f/3.5-4.5 USM Overview

The EF-S 10-22mm f/3.5-4.5 USM is designed for Canon EF-S-mount APS-C DSLRs, and provides a 16-35.2mm equivalent focal length range to suit working in a wide array of shooting conditions. Benefitting the flexible zoom range is a sophisticated optical design, which includes one Super-UD element and three aspherical elements to control chromatic and spherical aberrations, and a Super Spectra coating has been applied to limit flare and ghosting for improved contrast. Additionally, this lens sports a ring-type USM for quick and quiet autofocus performance and full-time manual focus override, and an internal focus design also quickens focusing speeds and maintains the overall lens length during operation.

Wide-angle zoom is designed for APS-C-format Canon EF-S-mount DSLRs and provides a 16-35.2mm equivalent focal length range.

One Super-Ultra-Low Dispersion glass element noticeably reduces color fringing and chromatic aberrations for high clarity and color fidelity.

Three aspherical elements limit distortion and spherical aberration in order to realize greater sharpness and accurate rendering.

Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.

A ring-type Ultrasonic Motor (USM), along with an internal focusing design, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.

Rounded six-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.

Canon EF-S 10-22mm f/3.5-4.5 USM Specs

Focal Length 10 to 22mm (35mm Equivalent Focal Length: 16 to 35.2mm)

Maximum Aperture f/3.5 to 4.5

Minimum Aperture f/22 to 27

Lens Mount Canon EF-S

Format Compatibility APS-C

Angle of View 107° 30' to 63° 30'

Minimum Focus Distance 9.45" / 24 cm

Maximum Magnification 0.17x

Optical Design 13 Elements in 10 Groups

Diaphragm Blades 6, Rounded

Focus Type Autofocus

Image Stabilization No

Filter Size 77 mm (Front)

Dimensions (ø x L) 3.29 x 3.54" / 83.57 x 89.92 mm

Length at Maximum Extension 3.54" / 90 mm

Weight 13.58 oz / 385 g

In the Box:

Canon EF-S 10-22mm f/3.5-4.5 USM Lens

Canon E-77 II 77mm Lens Cap

Canon Lens Dust Cap E (Rear Lens Cap)
